ARAMIS 3D Camera

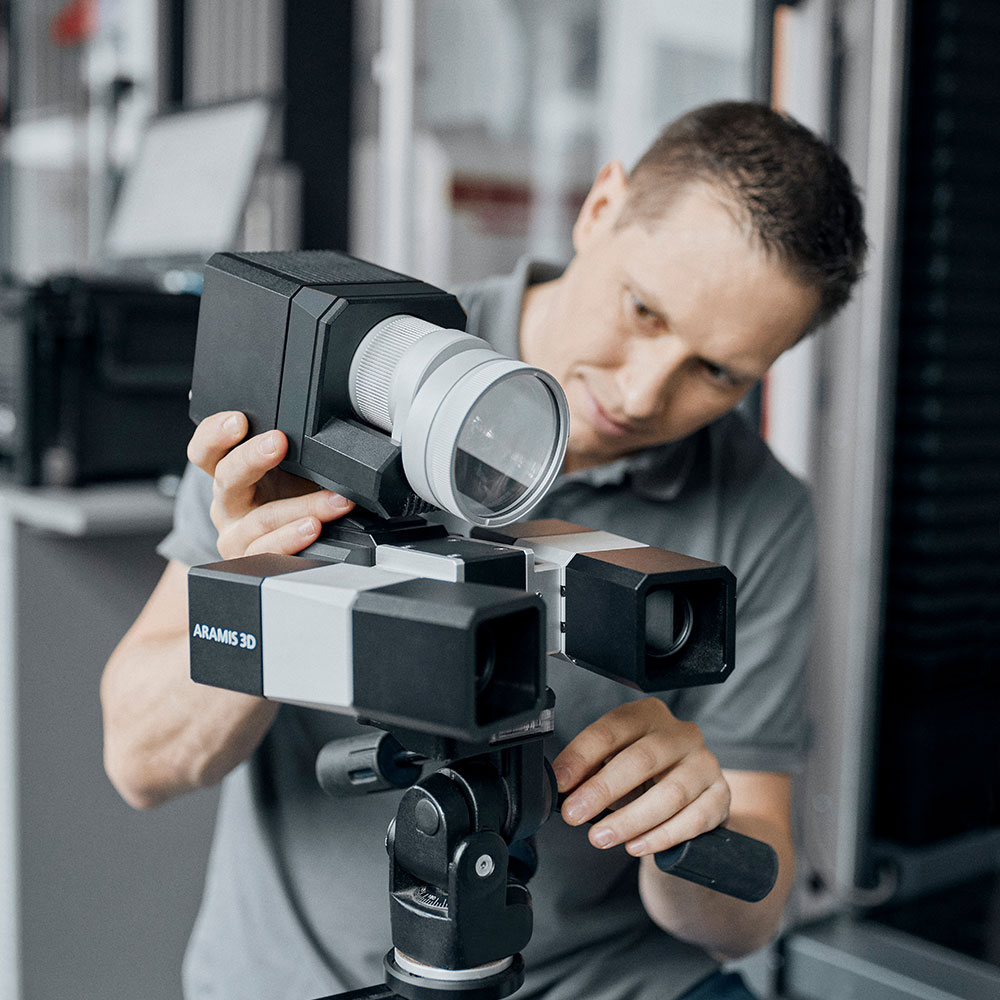

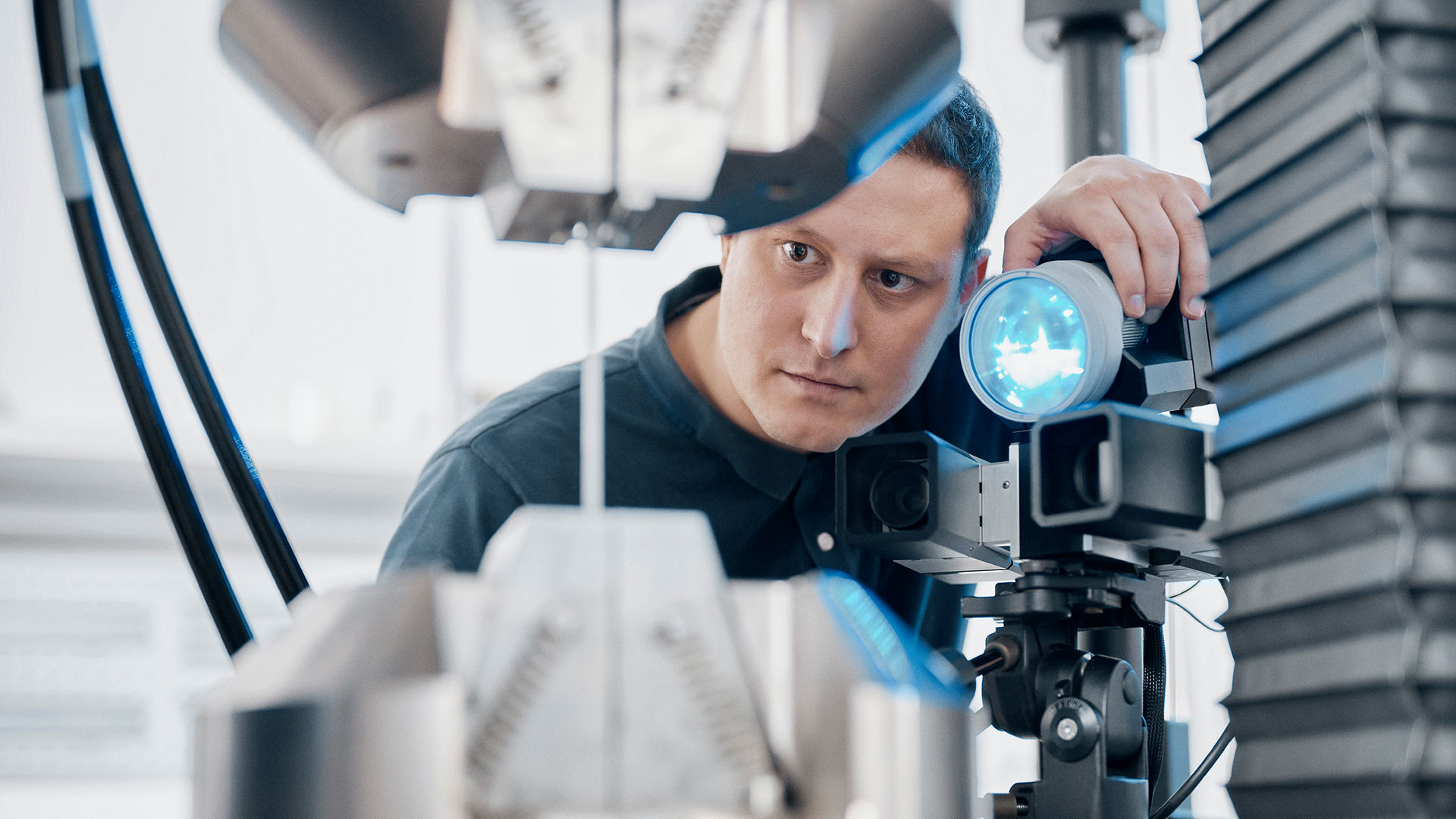

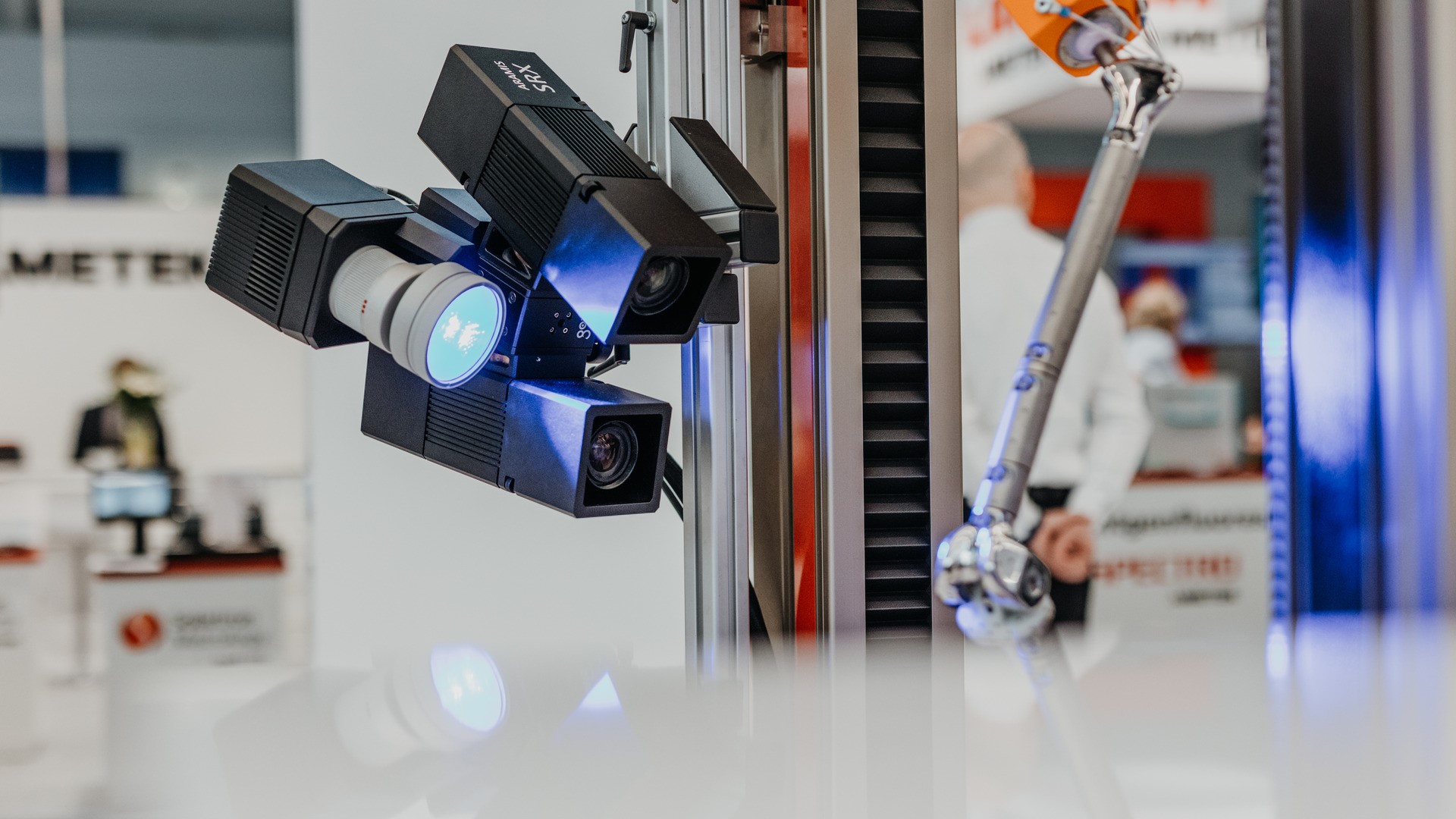

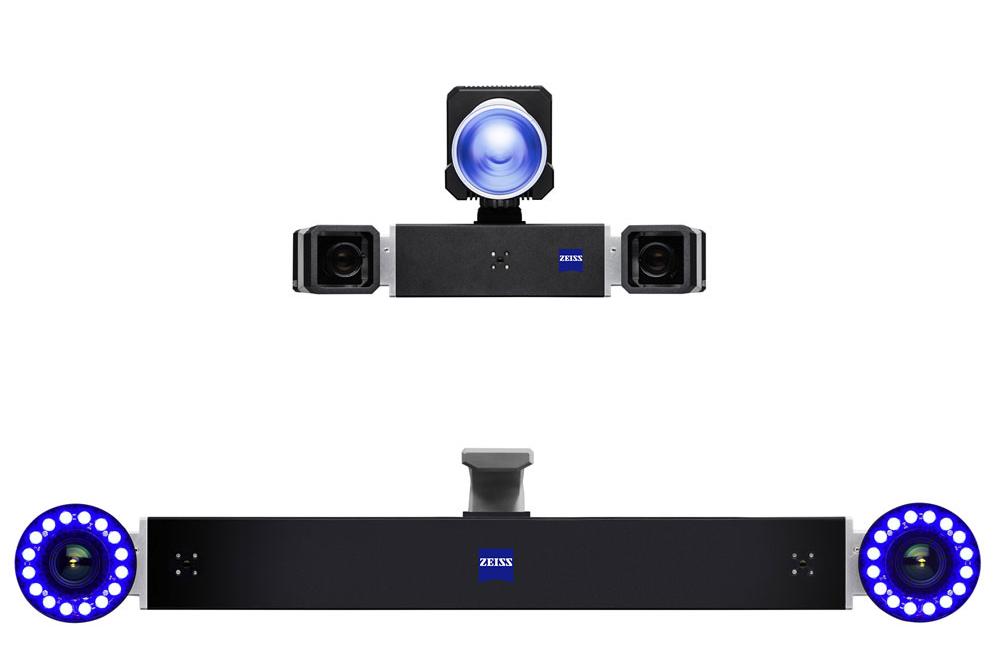

ARAMIS 3D Camera 12M is suitable for quasi-static testing applications from small material samples to large structural components. With a resolution of 12 megapixels and a maximum image recording rate of 25 fps at full resolution, the sensor offers the right performance to reliably determine material characteristics or to record and evaluate bending tests on aircraft wings, for example.

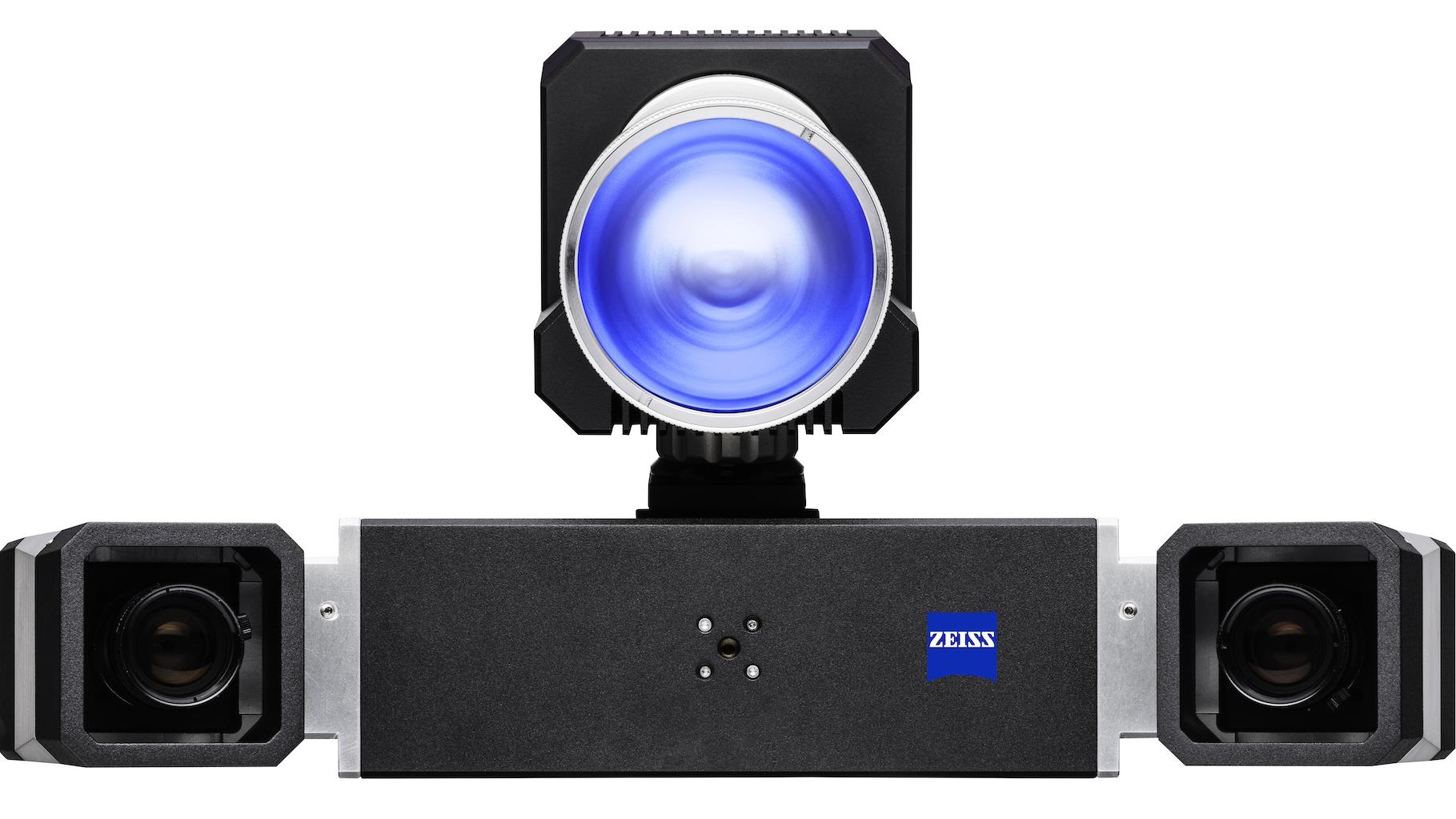

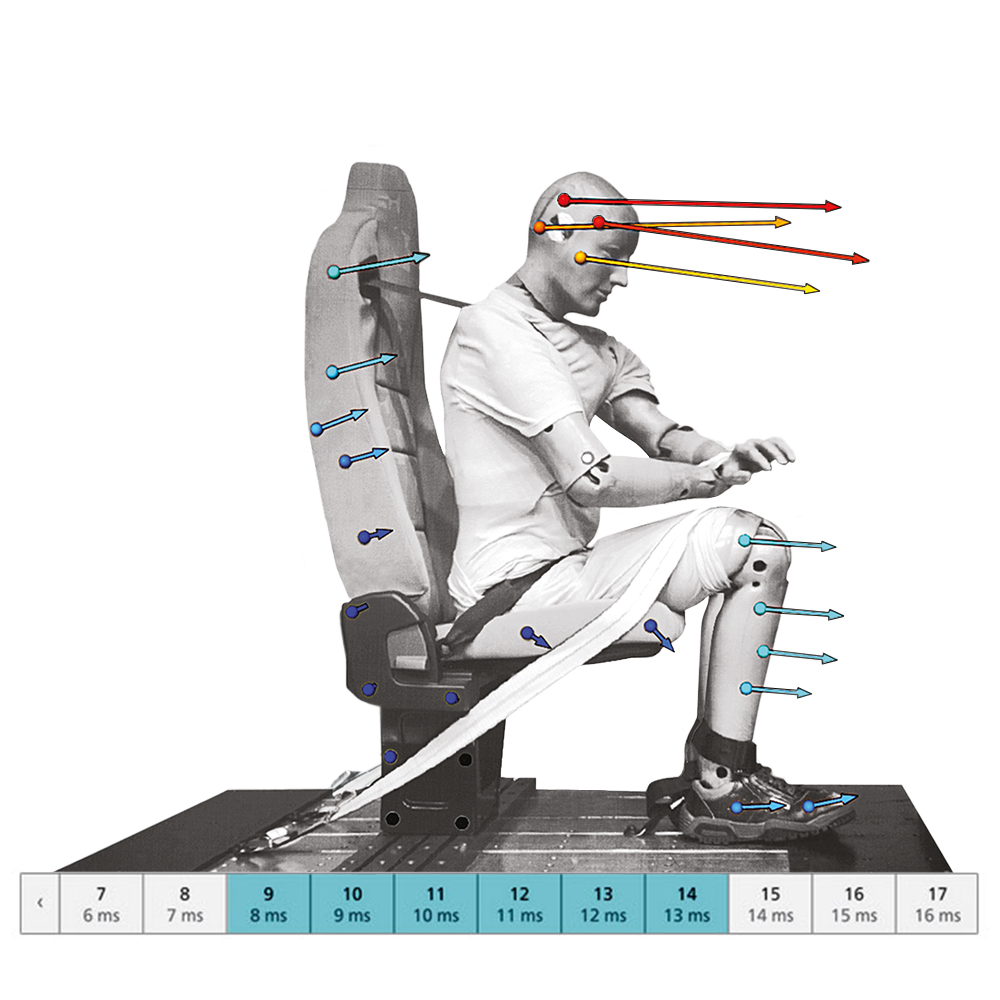

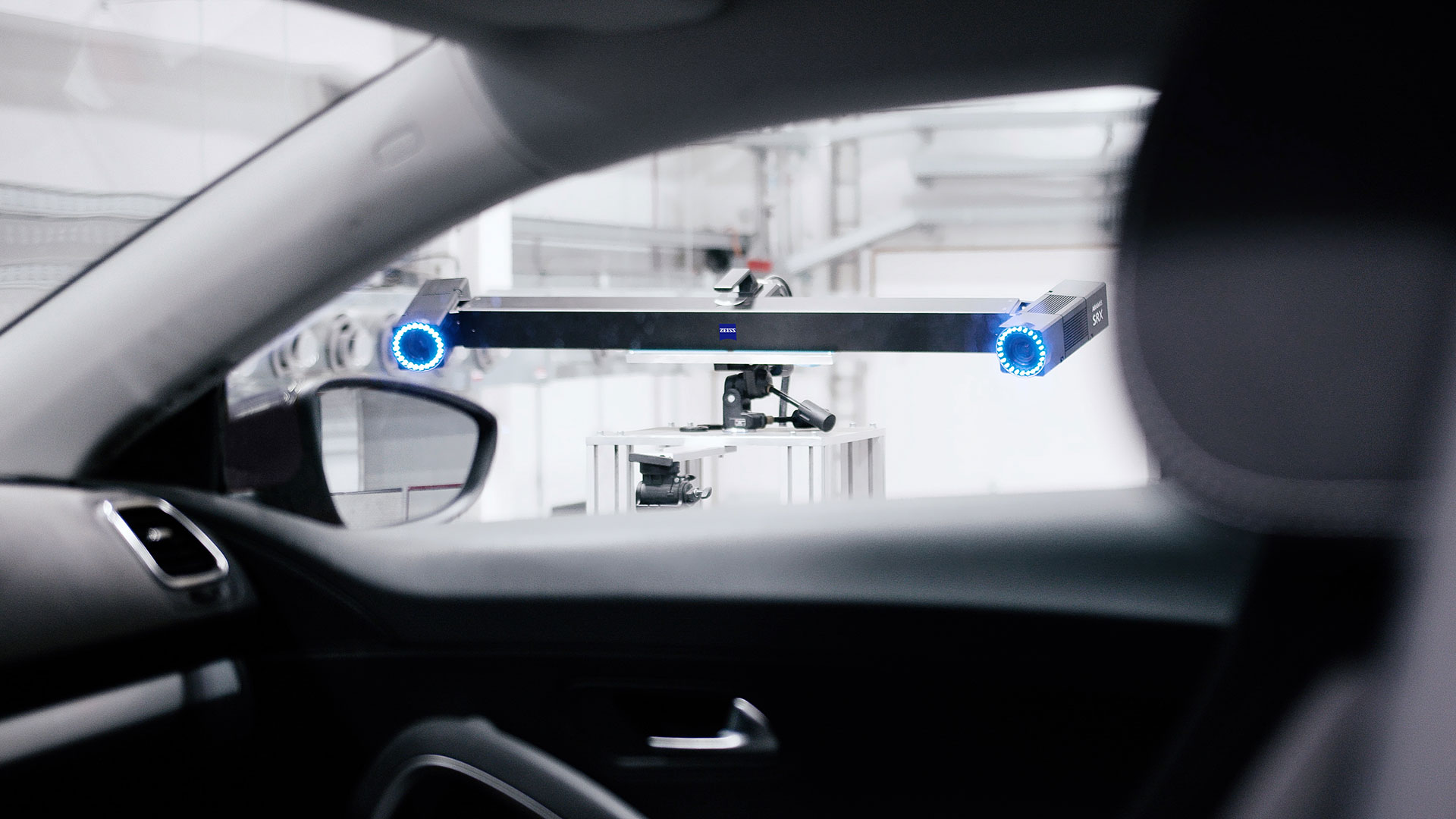

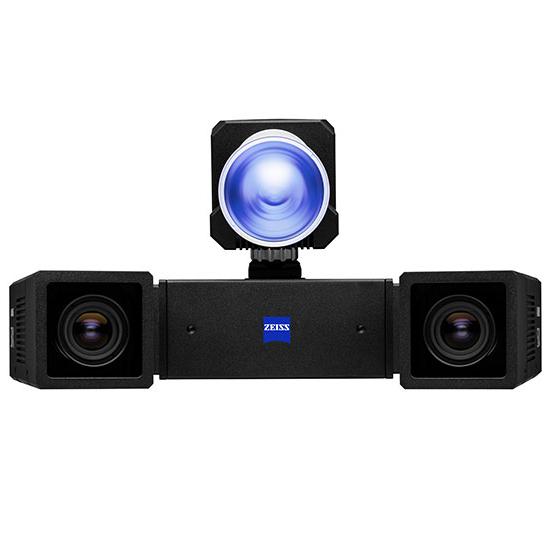

ARAMIS SRX is a high-resolution 3D camera system for demanding measuring tasks which require both capturing an event in detail over time and capturing local effects. With an image recording rate of 335 images per second at full resolution, the sensor is suitable for measuring 3D displacements, rotations, speeds and accelerations in crash tests, among other things.

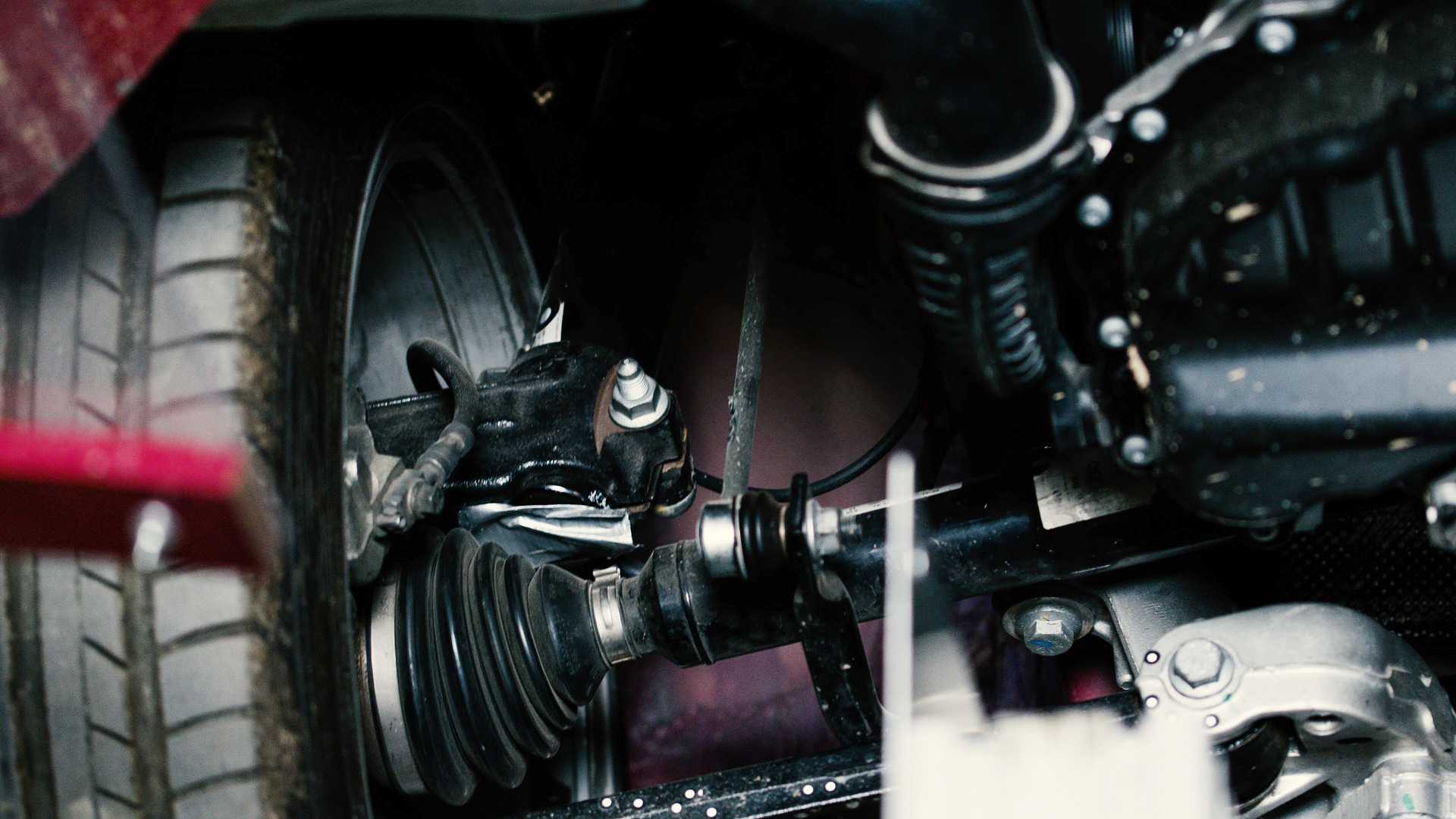

Whether e-mobility, lightweight construction or traditional vehicle development disciplines: With the 3D measuring data from ARAMIS, OEMs and suppliers can reliably meet the high requirements for safety, function and service life.

In the aerospace industry, ARAMIS has become an indispensable measuring system for the characterization of all materials, for prototype testing and for the evaluation of the stability of components and structural parts.

ARAMIS offers exactly the competitive advantage that companies need in such a fast-moving industry:
greater efficiency in product development, combined with fundamental expertise in materials and parts.


Optical 3D metrology provides valuable insights for research into new materials and the development of orthopedic implants and sports products.

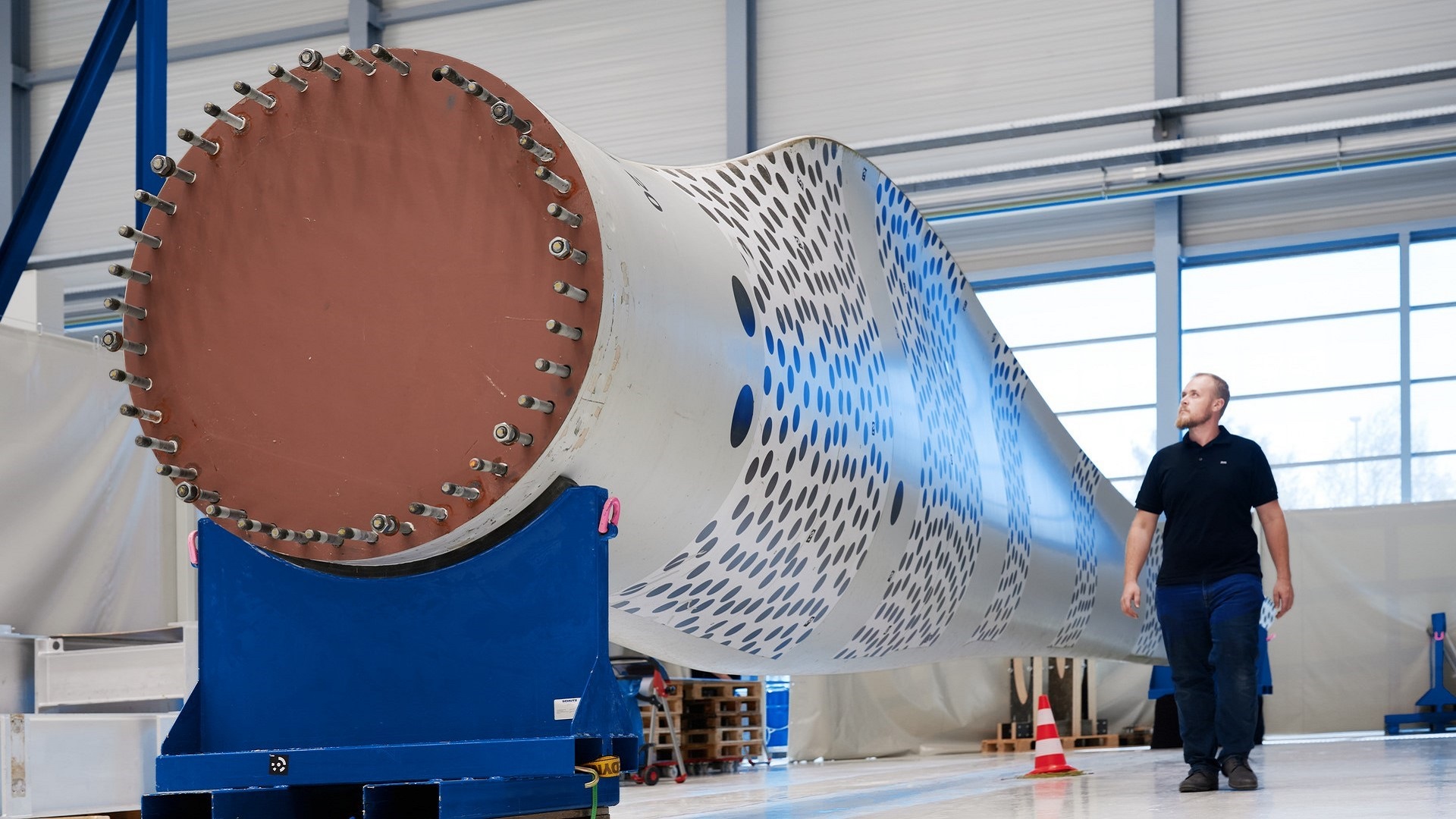

ARAMIS provides precise measuring data on strains, displacements and deformations, which energy-producing companies can use to optimize their systems and ensure safe operation.

Optical measurement technology is widely used in the field of civil engineering. It helps researchers get the results they need faster, more reliably, and at a lower cost.

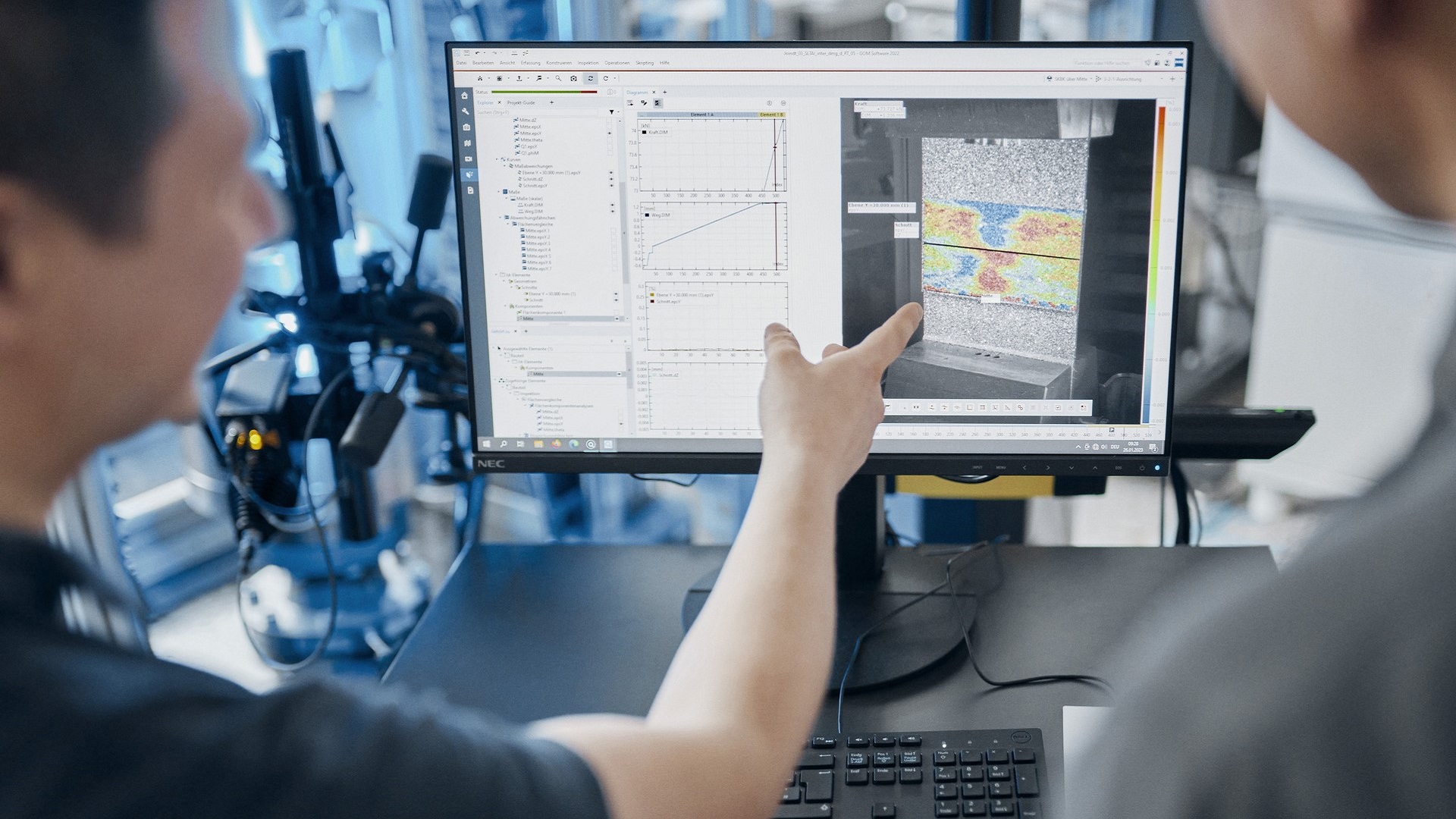

The precise full-field ARAMIS measuring results improve the accuracy of material parameters. Existing evaluation methods are optimized and made more reliable, such as the determination of flow and forming limit curves. Some material tests are only possible because ARAMIS measurements are carried out with a non-contact method and the results have a high spatial resolution. They are used, for example, in tensile, shear, compression and three-point bending tests as well as in high-speed and temperature tests.

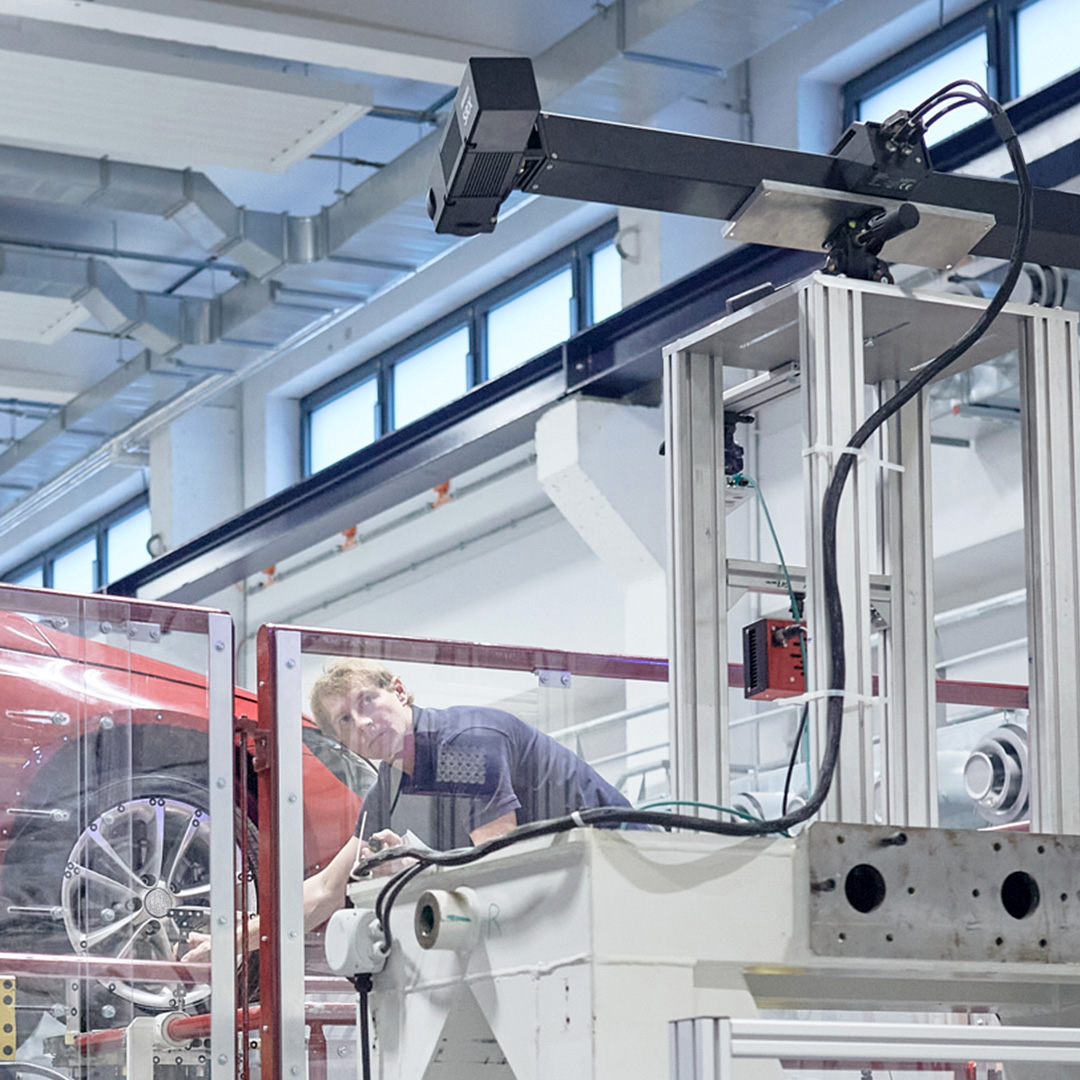

ARAMIS is used for stiffness analyses, vibration analyses, fatigue strength tests and crash tests.

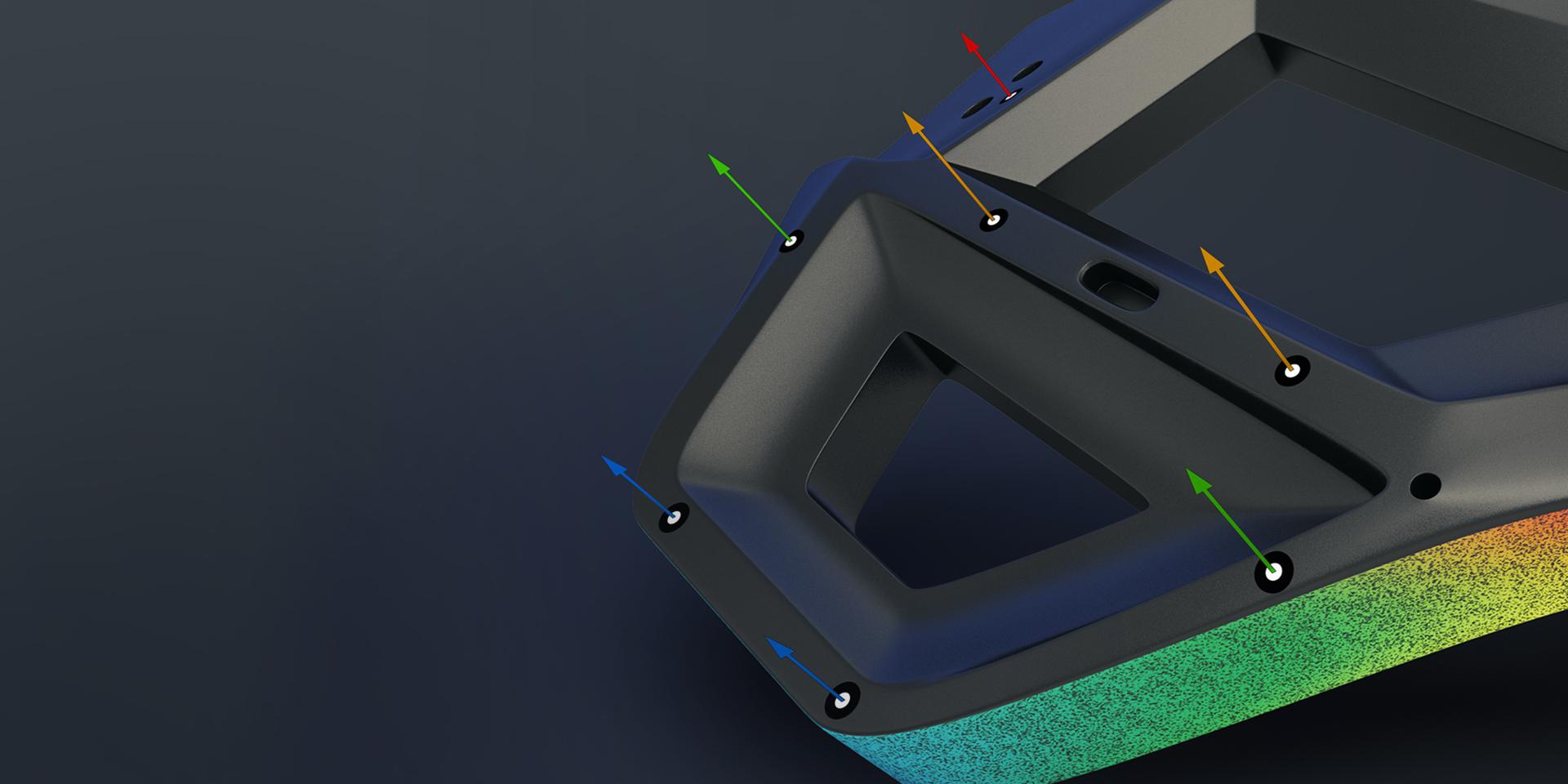

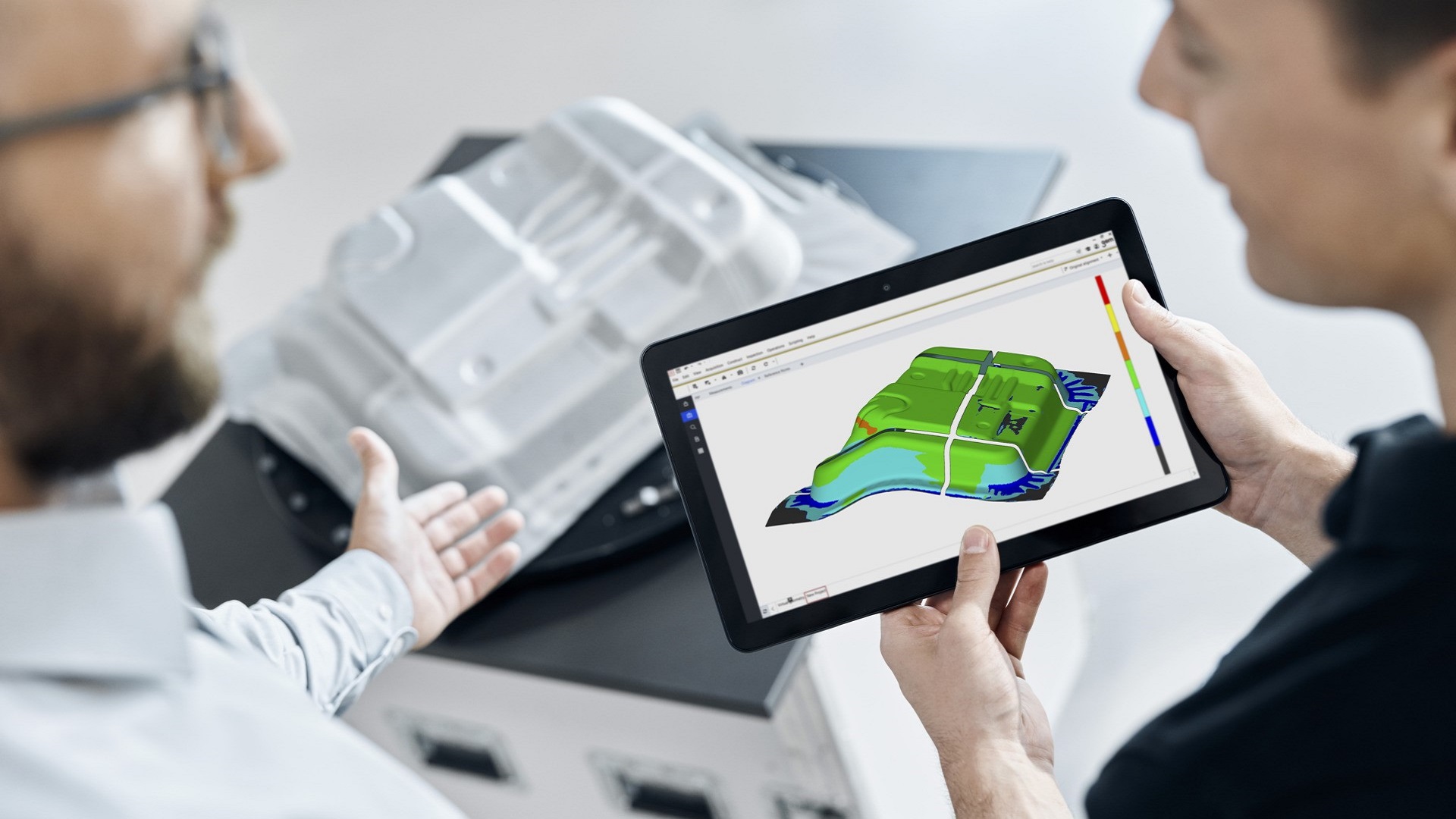

The measuring results provide the basis for determining product service life predictions or load limits and for optimizing the geometry layout. During the load test, the system captures the real part geometry including the non-linear deformation behavior and allows direct comparison to FEM data.

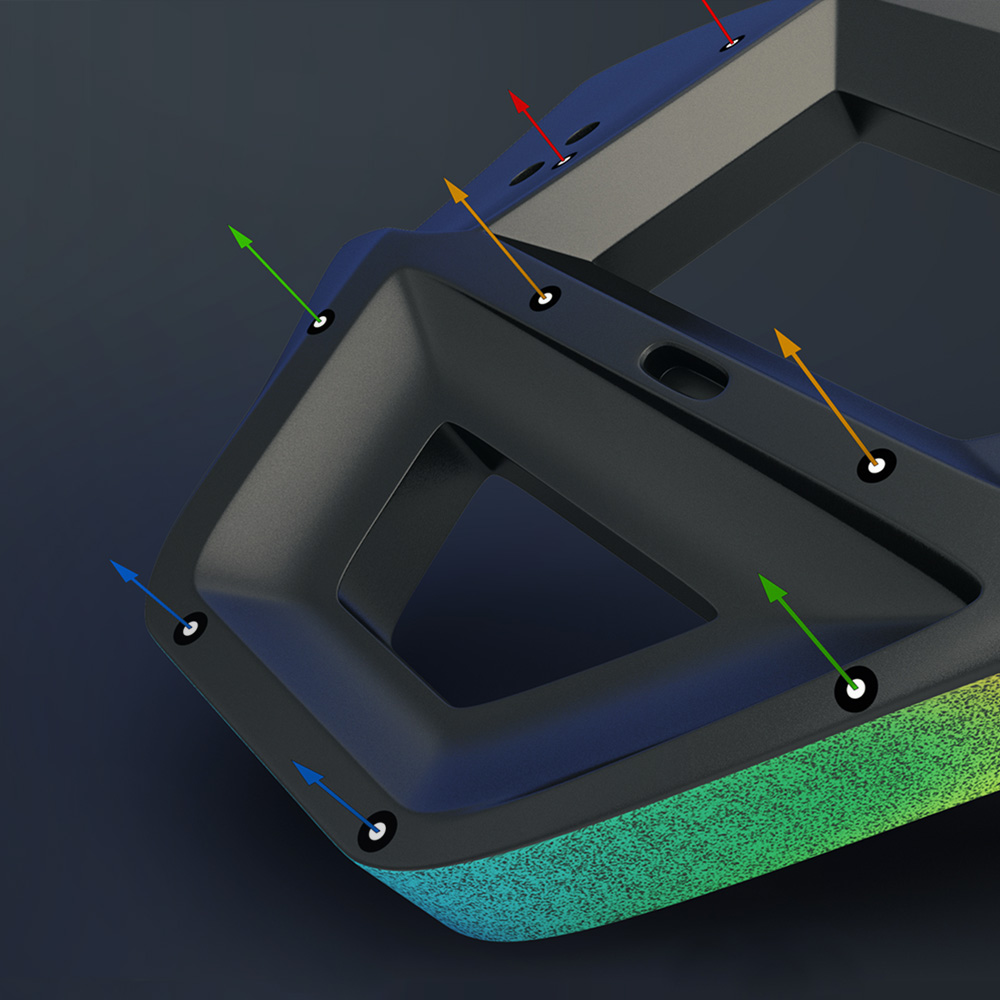

The ARAMIS sensors provide information about material properties, component deformation behavior, and boundary conditions of test setups. These are input parameters for the simulation models as well as comparison variables for optimization and validation. The software enables the import of FE data from ABAQUS, PAMSTAMP, LS-DYNA and ANSYS, AUTOFORM as well as their 3D alignment in space and to the measurement data.
